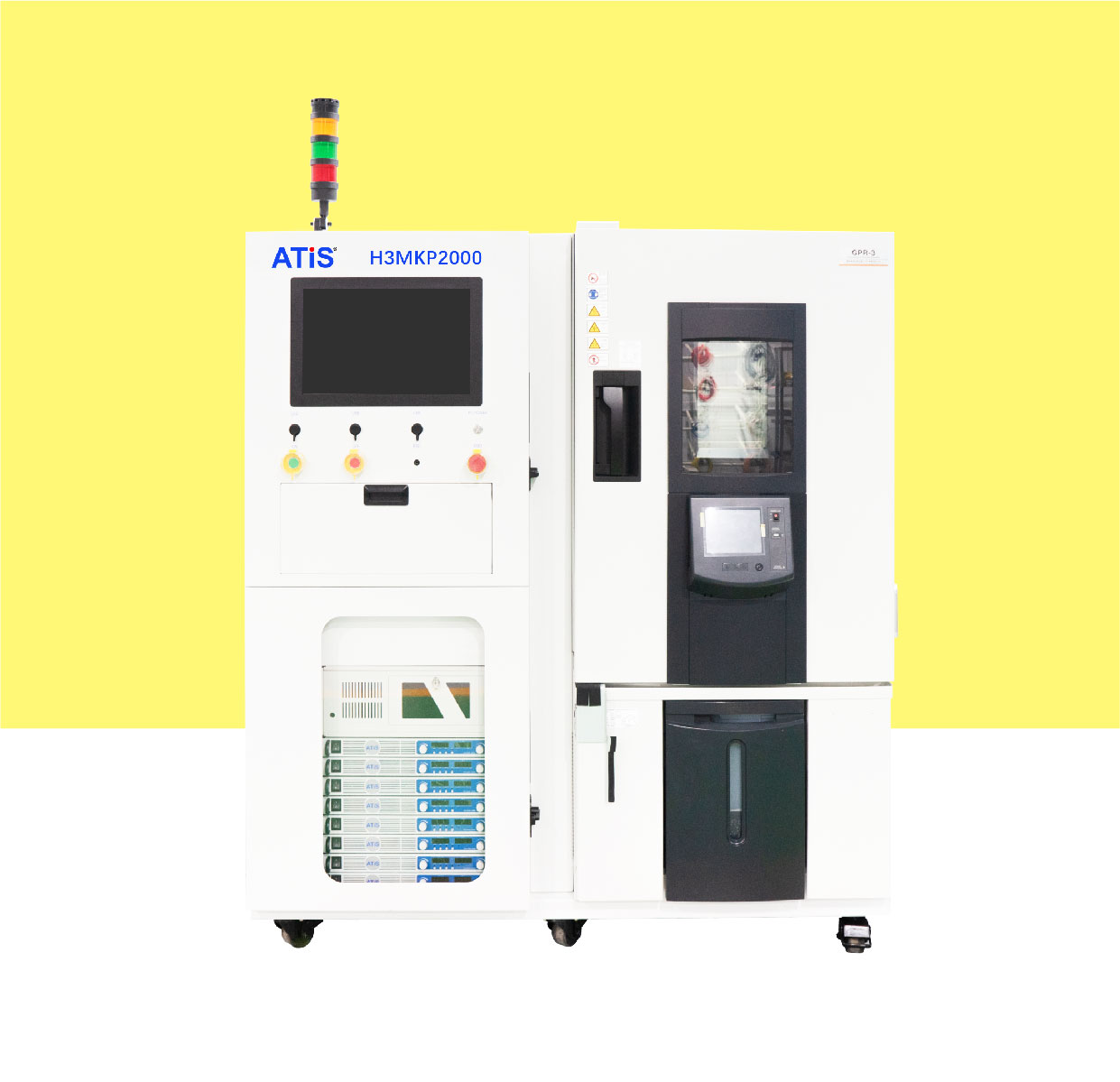

High temperature high humidity burn-in test system for capacitors(H3MKP2000)

The system can conduct high temperature and high humidity (double 85) burn-in for capacitors. During the burn-in process, it can monitor the leakage current and voltage of the tested components in real time, record and export the burn-in test data as required.

Function

Leakage current detection accuracy of nA level
30s full station data refresh of the whole machine
Unique high-voltage suppression circuit, instantaneous breakdown of components, without affecting burn-in process of other stations
Unique design of automatic charging and discharging circuit
Full experimenter human safety considerations are set

Product Features

Test temperature zone	1
Test temperature	RT-20~+180℃
Test humidity	25%rh~98%rh
Burn-in test zone	16(8/16 zone optional)
Stations per zone	40 (typical)
Burn-in voltage range	0~1200V
Voltage detection accuracy	±(1%+2LSB)
Current detection range	10nA~30mA
Current detection accuracy	±(1%+10nA)
Machine power supply	Three-phase AC380V±38V
Maximum power	12KW(typical)
Total weight	1050Kg(typical)
Dimensions of machine	1650mm(W)×1750mm(D)×1950mm(H)

Applicable standards

MIL-STD-202E

Applicable components

For MLCC, mica, film, paper media, ceramic and metallized paper media capacitors,etc.
