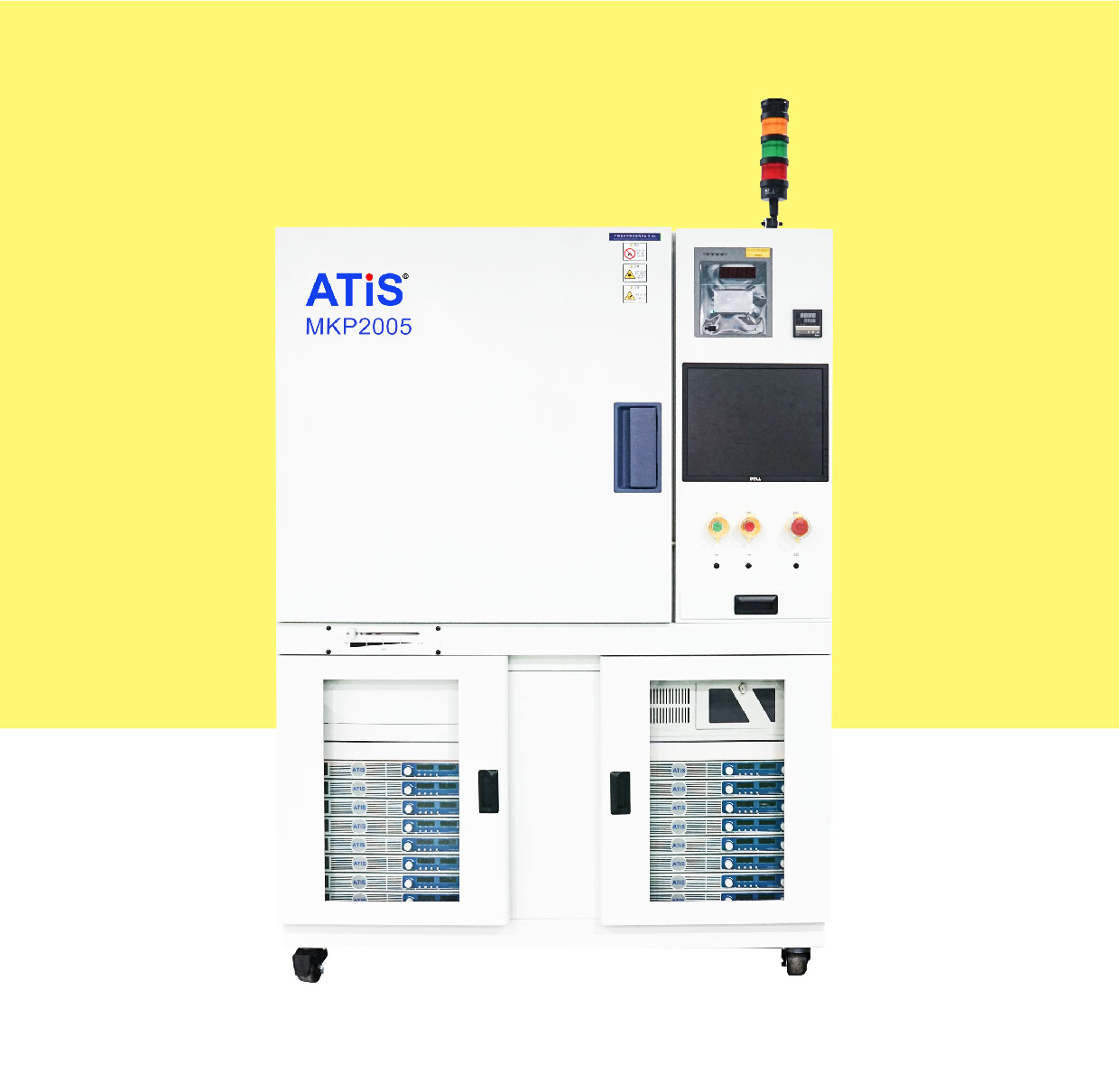

High temperature burn-in test system for capacitors(MKP2005)

The system can carry out capacitor burn-in screening test at room temperature+10 ℃~200 ℃, provide burn-in voltage up to 4500V, monitor the leakage current status and voltage status of the tested components in real time during burn-in process, protective rejection of over-limit components, record and export burn-in test data as required.

Function

  • Leakage current detection accuracy of nA level
  • 30s full station data refresh of the whole machine
  • Unique high-voltage suppression circuit, instantaneous breakdown of components, without affecting burn-in process of other stations
  • Unique design of automatic charging and discharging circuit
  • Adequate human safety considerations for experimenters

Product Features

Test temperature zone

 1

Test temperature

 RT+10~200℃

Test zone

 16(16/32/40/48 zone optional)

Stations per zone

 24(typical)

Burn-in voltage

 500~4500V

Voltage detection accuracy

 ±(1%+2LSB)

Current detection

 10nA~1000uA

Current detection accuracy

 ±(1%+10nA)

Machine power  supply

 Three-phase AC380±38V

Maximum    power

 8KW(typical)

Total weight

 680KG(typical)

Dimensions of machine

 1400mm(W)×1400mm(D)×2000mm(H)


Applicable standards

GJB360 MIL-STD-202E

Applicable components

For MLCC, mica, film, paper media, ceramic, metallized paper media capacitors, etc
