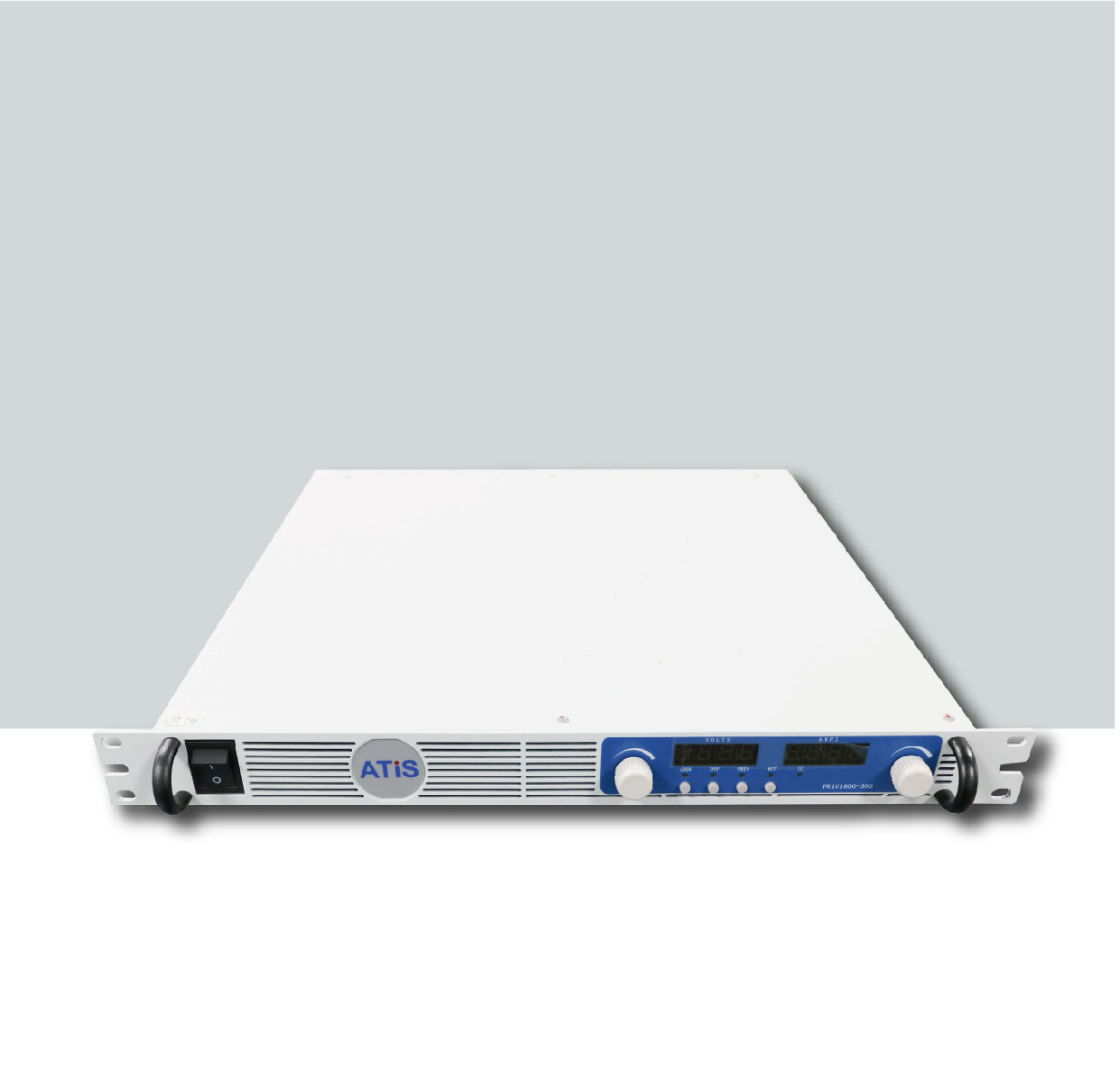

DC Power Supply(1U)

This series of products is used for electronic component manufacturing, reliability (durability) testing, burn-in testing, and various laboratory power supply applications. It employs a "front air intake, rear exhaust" heat dissipation design, effectively saving space and allowing seamless stacking.

Function

Can be externally controlled for analog control
Can be operated in series or parallel
Final setting memory function
Automatic/safe startup function

Product Features

Power Input	AC220W50H2 Single-phase
Efficiency	88%(typical)
Power Factor	0.99 (typical)
High Precision	Built-in 16-bit WD, DVA converter
High Precision	Built-in 16-bit WD, DVA converter
Communication Port	Standard RS232/485 serial communication, optional LAN or GPIB
Dimensions	423mmx433mmx44mm(excluding protrusions)

PR1U	1500-25	1800-40	1800-60	1800-100	1800-300	1800-600	1800-1500
Voltage（V）	25	40	60	100	300	600	1500
Current（A）	60	45	30	18	6	3	1.2
