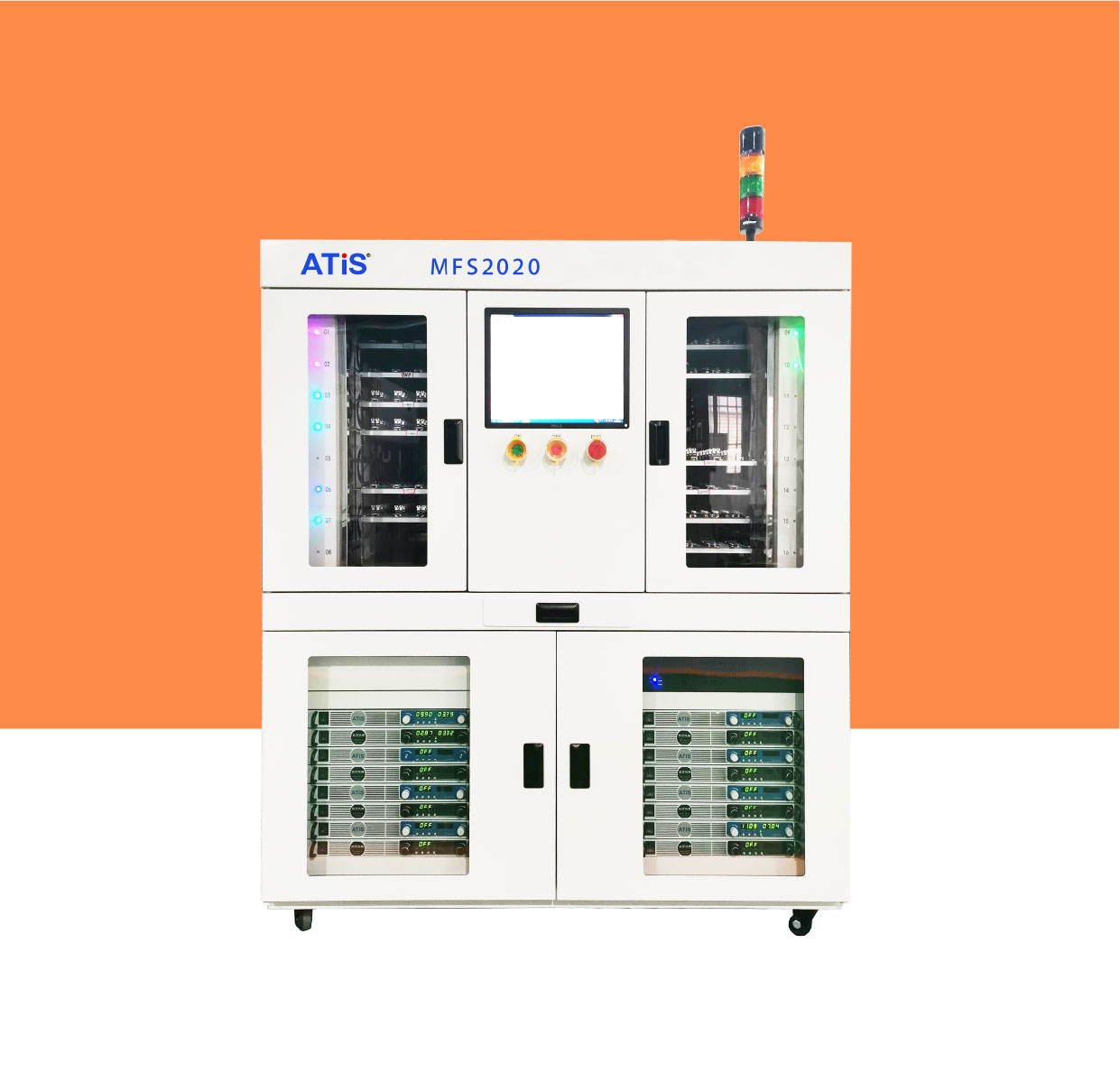

Multi functional comprehensive burn-in test system(MFS2020)

The system is applicable to burn-in of various medium and small power diodes, triodes, medium and small power FETs, voltage-regulator tube, various resistors, opto-coupler, 3-end voltage regulators, and F, B, TO-92, TO-126, TO-247, TO-220, TO-3P, chip and other packaging burn-in components, and is applicable to conducting steady-state screening tests for medium and small power components and intermittent life tests for high-power components.

Function

Automatically identify the switching polarity according to the inserted burn-in plate
The burn-in power supply of the equipment can be set to program control mode and manual mode
The constant current loop can be calibrated to make the current error less than (0.2%+3mA)
The transverse forced air cooling structure is adopted to take away the heat generated in the burn-in process,so that the temperature of the test chamber tends to be uniform
8 sets of independent fan cooling control components are provided to independently control 2 test zones

Product Features

Test temperature zone	2
Test temperature	RT
Test zone	16
Test capability	The detection capacity of a single board is 80 bits, and the maximum number of the whole machine is 1280 bits
Test parameter detection	Current detection range: 0.5mA~16.0A, error±(1%+2LSB) voltage detection range: 0~100.0V, error±(1%+2LSB)
Constant current electronic load	Control scope:20~2000mA, control accuracy:±(0.2％+3mA) Detection range:20~2000mA (single channel) 16A(In parallel), accuracy:±(0.2％+3mA)
Machine power supply	Three-phaseAC380±38V
Maximum power	10KW (typical)
Total weight	1000KG(typical)
Dimensions of machine	1500mm(W)×1350mm(D)×1800mm(H)

Applicable standards

GJB128 MIL-STD-750

Applicable components

For TO-92, TO-126, TO-247, TO-220, TO-3P, chip and other packaging diodes, triodes, medium and small power FETs,voltage-regulator tube, various resistors, opto-couplers, and 3-end voltage regulators
