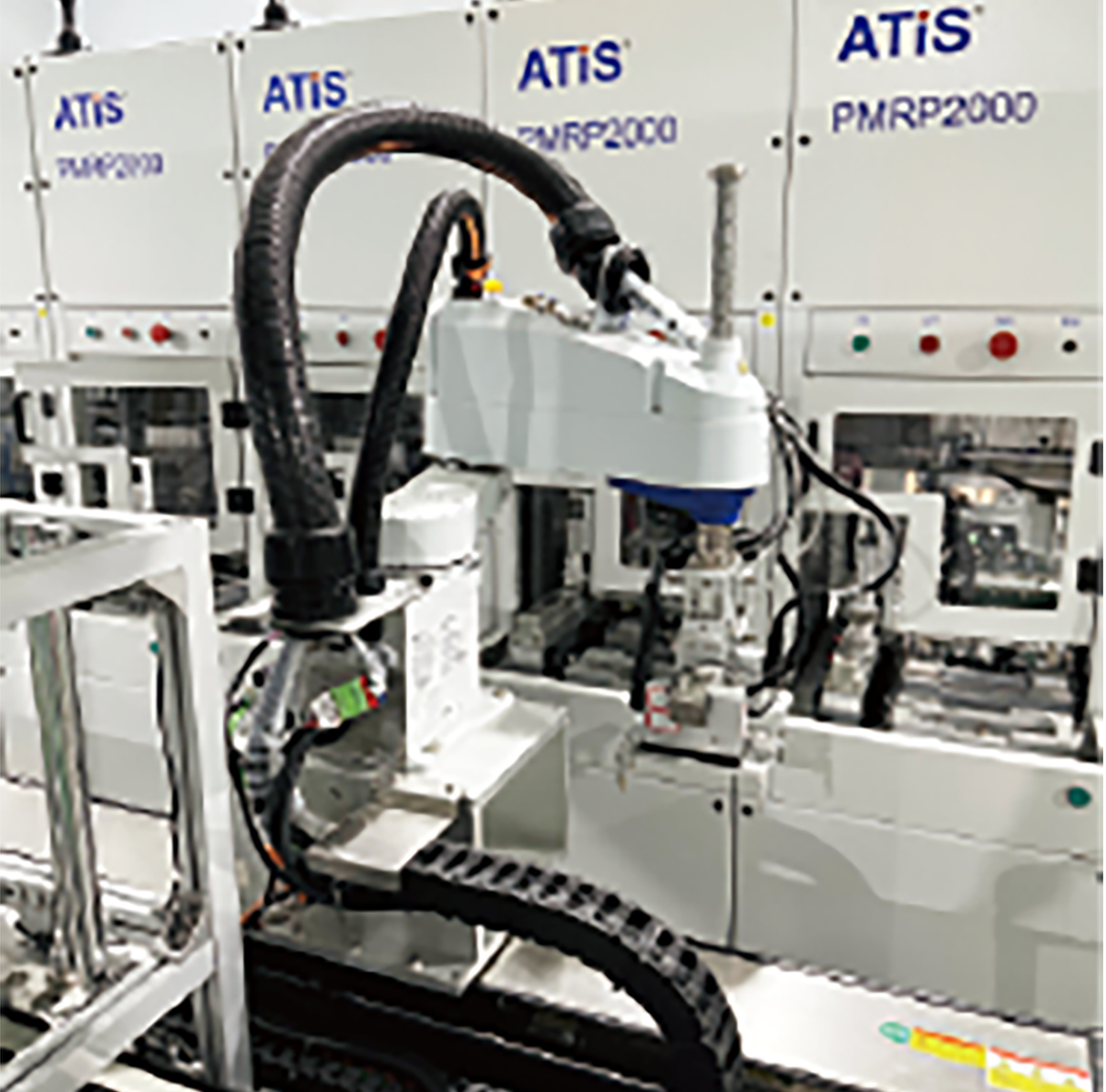

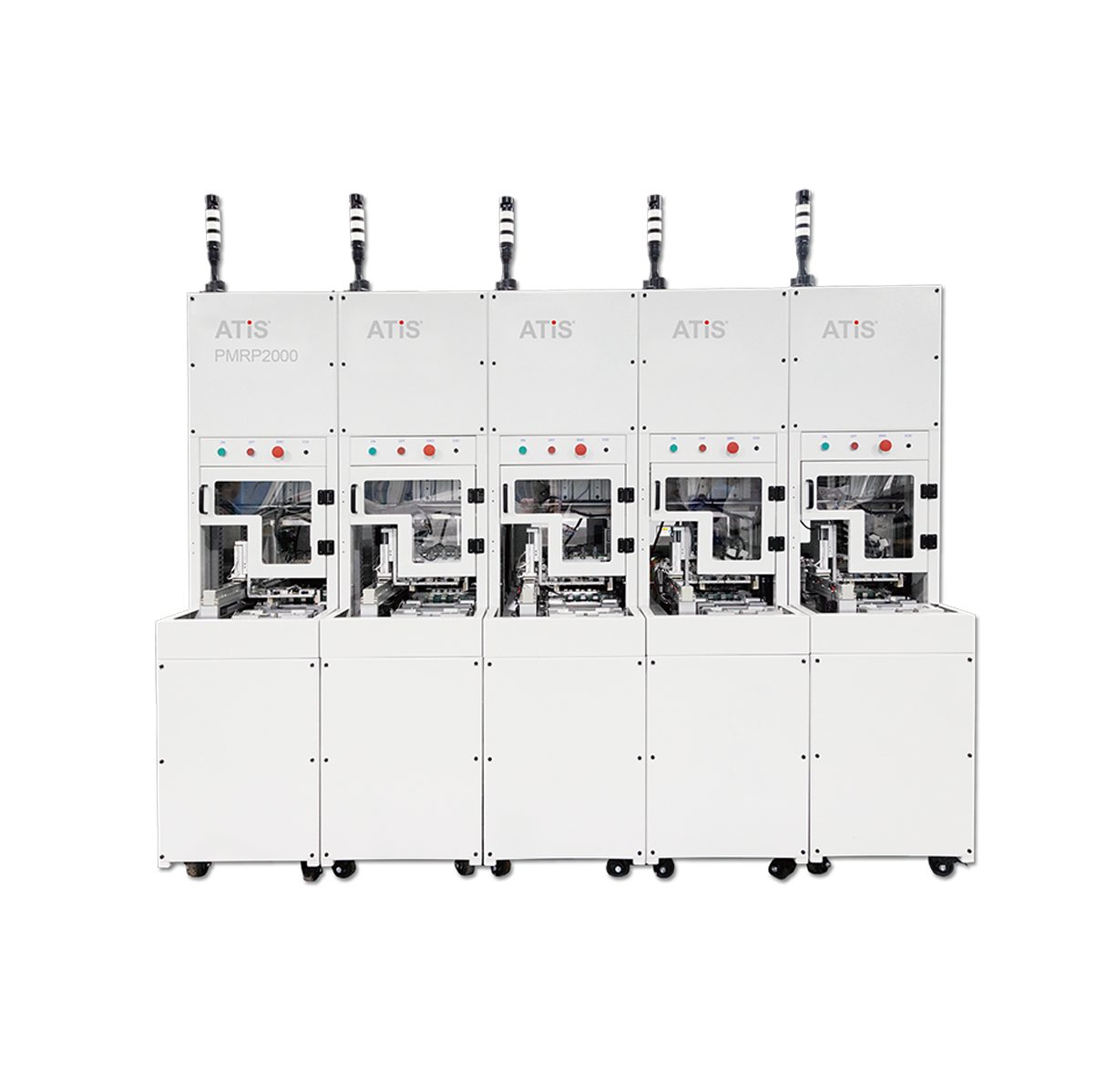

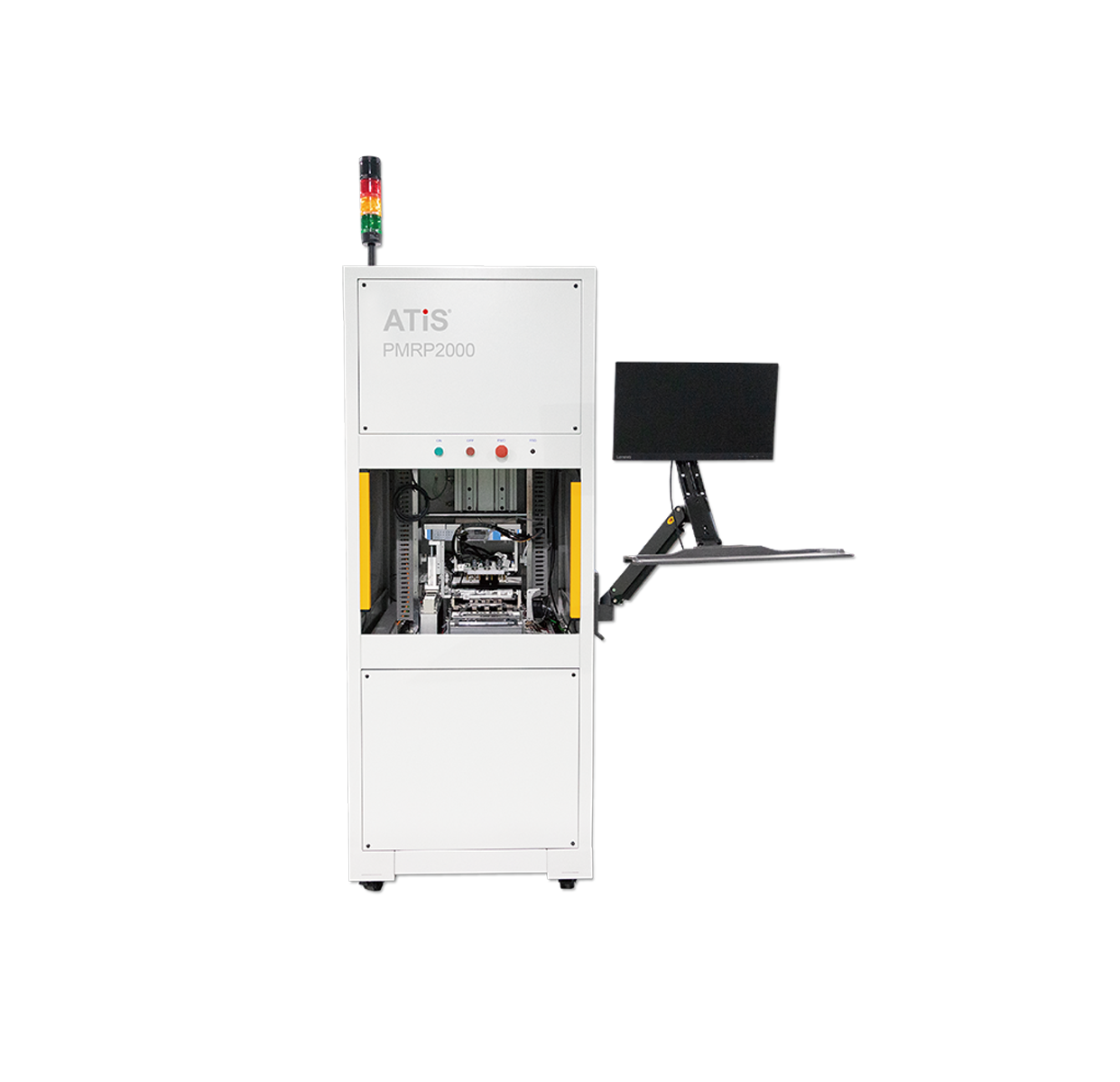

IGBT power module reliability test system(PMRP2000)

The system is suitable for continuous power testing of IGBT power modules of various sizes. Based on practical application environments, burn-in parameter test is built perform electrical stress burn-in test on the system. Simulate the working conditions of IGBT power modules in the use of the entire vehicle for long-term high current burn-in and motor stall testing. Real time monitoring of peak current, average current, input voltage, output voltage and temperature of the tested device during burn-in process, record burn-in test data as needed, and export test reports.

Function

Support minute/second level power test
Real time monitoring of water cooler flow rate and temperature, with adjustable temperature and flow rate
The driving circuit has a protective function, and module damage does not affect the normal operation of the equipment
It has the function of quickly cutting off the busbar voltage, which is convenient for failure analysis
Full experimenter human safety considerations are set

Product Features

Test temperature zone	1
Test temperature	+25°C~+85°C
Burn-in test zone	1
Busbar voltage range	100V~1000V, power 40KW
Current range	Maximum peak current 800A@15s
Load current range	Three-phase power load rated current 800A
Machine power supply	Three-phase AC380V±38V
Maximum power	40KW (typical)
Total weight	1000Kg (Reactor included))
Dimensions of machine	800mm(W)×1100mm(D)×2000mm(H)
Water temperature machine size	780mm(W)×1000mm(D)×1200mm(H)

Applicable standards

GB/T 18488.1-2015、GB/T 18488.2-2015、GB/T 29307-2012、GB/T 18385-2005、QCT 893-2011

Applicable components

For IGBT power module of various sizes.
